PRF024

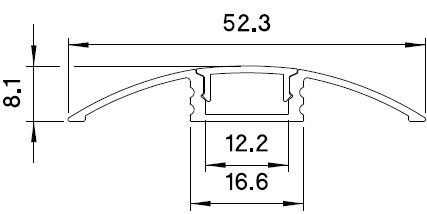

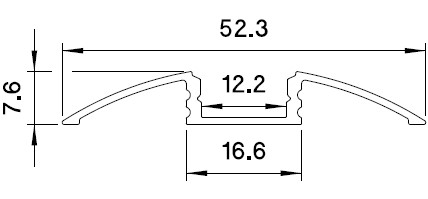

Walkable profile with flanges 52.3x8mm
Anodized extruded aluminum profile walkable.
The product lends itself to being customized, from the color of the profile to the length, being able to choose the type of lighting we want.
| Code | Description |
|---|---|

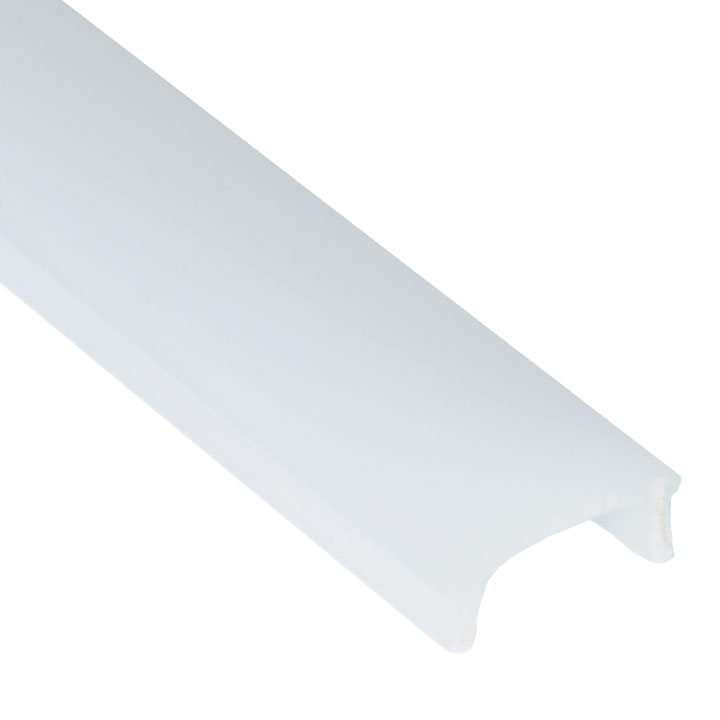

| PRF003PX01 | Opal polycarbonate diffuser (2m bar) |
| PRF003PX11 | Opal polycarbonate diffuser (1m bar) |
| PRF003PX31 | Opal polycarbonate diffuser (3m bar) |
| PRF003PX41 | Opal polycarbonate diffuser (4m bar) |
| PRF004ST02 | Metal bracket for PRF004 profile (2-piece kit) |
| PRF024/100 | U-shaped aluminium walkable profile with flanges (1m bar) |
| PRF024/200 | U-shaped aluminium walkable profile with flanges (2m bar) |
| PRF024TP01 | Grey plastic cap for PRF024 profile |
| S03D | Sensor Touch on/off for profiles with step dimmer |
| S03DC | Sensor Touch on/off for continuously dimming profiles |
| S03N | Sensor Touch on/off for non-dimmable profiles |
| S04PIR | PIR sensor on/off for LED profiles |
| S05O | Horizontal infrared sensor on/off for LED profiles |
| S05V | Vertical infrared sensor on/off for LED profiles |
| Finishing | Input power supply | Watt | IP grade | |
|---|---|---|---|---|
| PRF003PX01 | Opale | |||
| PRF003PX11 | Opale | |||
| PRF003PX31 | Opale | |||
| PRF003PX41 | Opale | |||
| PRF004ST02 | ||||
| PRF024/100 | ZA | 19,2W | ||
| PRF024/200 | ZA | 19,2W | ||
| PRF024TP01 | Grigio chiaro opaco (RAL9006) | |||
| S03D | 12,0/24,0Vdc | 60,0W | IP20 | |
| S03DC | 12,0/24,0Vdc | 75,0W | IP20 | |
| S03N | 12,0/24,0Vdc | 60,0W | IP20 | |
| S04PIR | 12,0/24,0Vdc | 72,0W | IP20 | |
| S05O | 12,0/24,0Vdc | 96,0W | IP20 | |
| S05V | 12,0/24,0Vdc | 96,0W | IP20 |
