PRF019

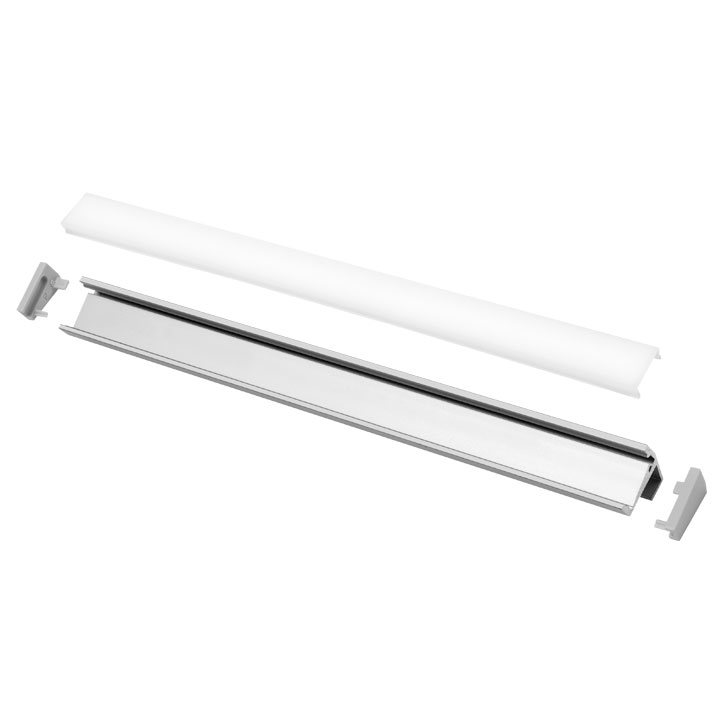

8mm Glass Shelf Profile
Anodized extruded aluminum profiles.

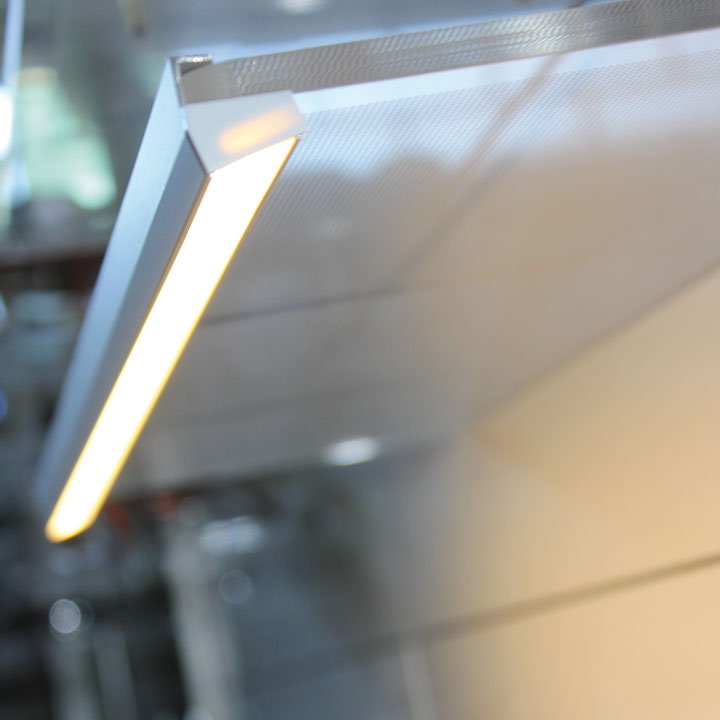

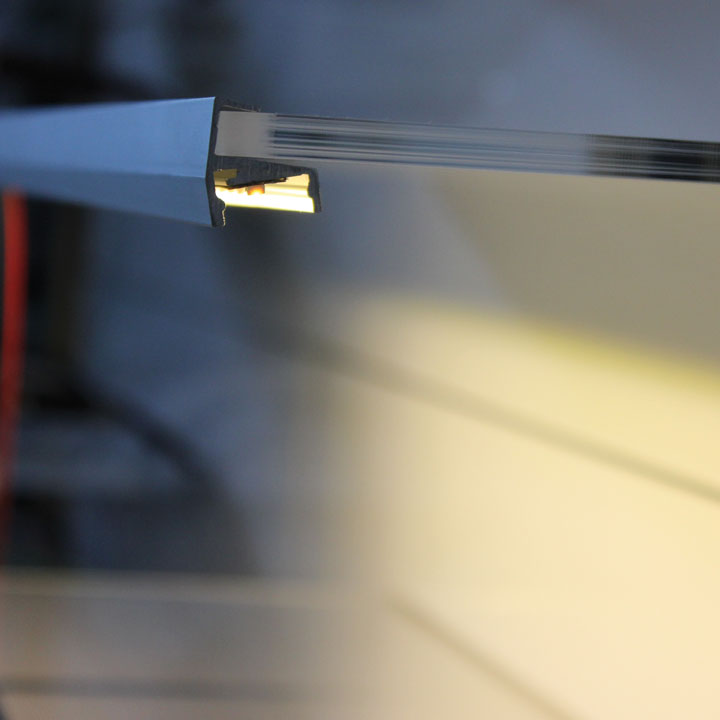

Designed to illuminate glass shelves.
Two different solutions to have a good decorative effect.
The products can be customized, from the color of the profile to the length, being able to choose the type?????????????????????
| Code | Description |
|---|---|
| PRF019/100 | Aluminum profile for 8mm glass shelves (1m bar) |
| PRF019/200 | Aluminum profile for 8mm glass shelves (2m bar) |

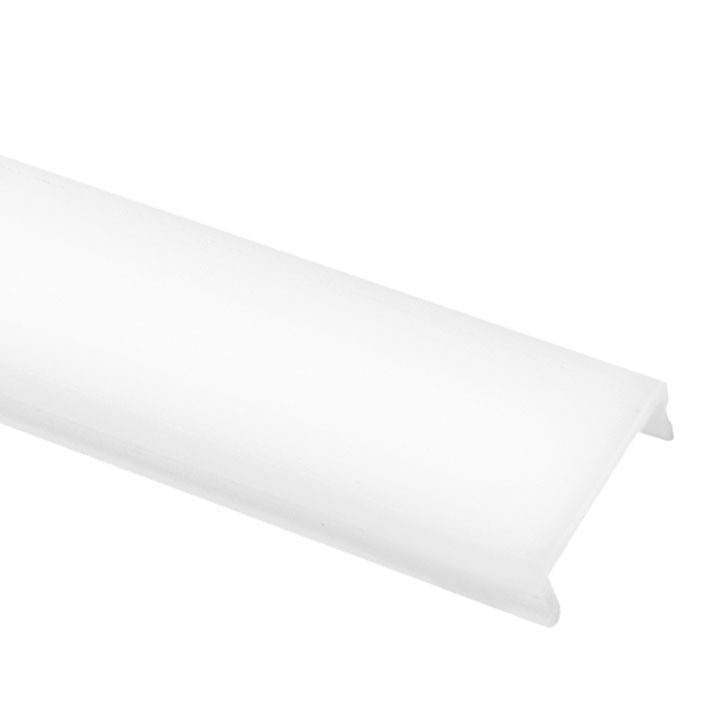

| PRF019PX01 | Opal polycarbonate diffuser (2m bar) |
| PRF019PX03 | Satin polycarbonate diffuser (2m bar) |
| PRF019PX11 | Opal polycarbonate diffuser (1m bar) |
| PRF019PX13 | Satin polycarbonate diffuser (1m bar) |
| PRF019TP01 | Grey plastic cap for PRF019 profile |
| S03D | Sensor Touch on/off for profiles with step dimmer |
| S03DC | Sensor Touch on/off for continuously dimming profiles |
| S03N | Sensor Touch on/off for non-dimmable profiles |
| Finishing | Input power supply | Watt | IP grade | |
|---|---|---|---|---|
| PRF019/100 | ZA | 14,4W | ||
| PRF019/200 | ZA | |||
| PRF019PX01 | Opale | |||
| PRF019PX03 | Satinato | |||
| PRF019PX11 | Opale | |||
| PRF019PX13 | Satinato | |||
| PRF019TP01 | Grigio chiaro opaco (RAL9006) | |||
| S03D | 12,0/24,0Vdc | 60,0W | IP20 | |
| S03DC | 12,0/24,0Vdc | 75,0W | IP20 | |
| S03N | 12,0/24,0Vdc | 60,0W | IP20 |
