PRF016

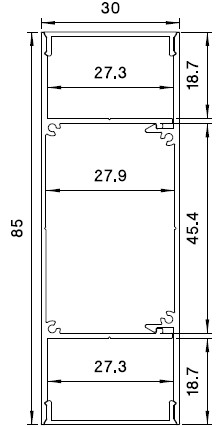

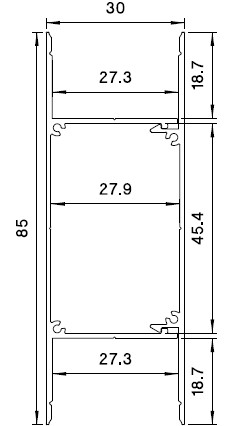

Profilo bi emissione da parete 85x33mm
Profilo in alluminio estruso anodizzato da parete.
Le due emissioni di luce (superiore ed inferiore) permettono di differenzializzare anche il colore della stessa.
All’interno del prodotto è possibile installare l’alimentatore.
Il prodotto si presta per essere personalizzato, dal colore del profilo alla lunghezza, potendo scegliere il tipo di illuminazione che desideriamo.
| Certifications | CE , RoHS |
| Regulations | EN61000-4-2.3.4.5.6.8.11 , EN61547 , EN55015 |
| EN standards | EN55015 , EN61000-3-2ClassC , IEC61000-3-3 |
| IP grade | IP20 |
| Installation | Parete |
| Body material | Metallo |
| Watt | 75,0W , 150,0W , 23,0W |
| Power supply | 100,0-240,0Vac , 230,0Vac |
| Connection | Morsetto |
| Dimmable | 1-10V + PUSH |
| connection | Collegamento in parallelo |
| Packaging | Box , Bag |
| Warranty | 2 years |
| Finishes | ZA , Nichel nero lucido , Opale , Trasparente , Grigio chiaro opaco (RAL9006) , Bianco RAL9010 |
Downloads:
| Code | Description |
|---|---|
| APS075.24P | Slim IP20 voltage supply, 24Vdc, 75W, 230Vac Dimmer, RF, push 1/10 |
| AST075.24 | IP20 slim voltage supply, 24Vdc, 75W |
| AST150.24 | IP20 slim voltage supply, 24Vdc, 150W |
| PRF016/100G | Double beam wall mounted aluminium profile (1m bar) |
| PRF016/100W | White wall profile with double light beam (1m bar) |
| PRF016/200G | Double beam wall mounted aluminium profile (2m bar) |
| PRF016/200W | White wall profile with double light beam (2m bar) |
| PRF016/300G | Double beam wall mounted aluminium profile (3m bar) |
| PRF016/300W | White double beam wall profile (3m bar) |
| PRF016PX01 | Opal polycarbonate diffuser (2m bar) |
| PRF016PX02 | Transparent polycarbonate diffuser (2m bar) |
| PRF016PX11 | Opal polycarbonate diffuser (1m bar) |
| PRF016PX12 | Transparent polycarbonate diffuser (1m bar) |
| PRF016PX31 | Opal polycarbonate diffuser (3m bar) |
| PRF016PX32 | Transparent polycarbonate diffuser (3m bar) |
| PRF016TP01 | Grey plastic cap for PRF016 profile |
| PRF016TP02 | White plastic cap for PRF016 profile |
| Finishing | Input power supply | Watt | IP grade | |
|---|---|---|---|---|
| APS075.24P | 100,0-240,0Vac | 75,0W | IP20 | |
| AST075.24 | 230,0Vac | 75,0W | IP20 | |
| AST150.24 | 230,0Vac | 150,0W | IP20 | |
| PRF016/100G | ZA | 23,0W | ||
| PRF016/100W | Nichel nero lucido | 23,0W | ||
| PRF016/200G | ZA | 23,0W | ||
| PRF016/200W | Nichel nero lucido | 23,0W | ||
| PRF016/300G | ZA | 23,0W | ||
| PRF016/300W | Nichel nero lucido | 23,0W | ||
| PRF016PX01 | Opale | |||
| PRF016PX02 | Trasparente | |||
| PRF016PX11 | Opale | |||
| PRF016PX12 | Trasparente | |||
| PRF016PX31 | Opale | |||
| PRF016PX32 | Trasparente | |||
| PRF016TP01 | Grigio chiaro opaco (RAL9006) | |||
| PRF016TP02 | Bianco RAL9010 |
