PRF005

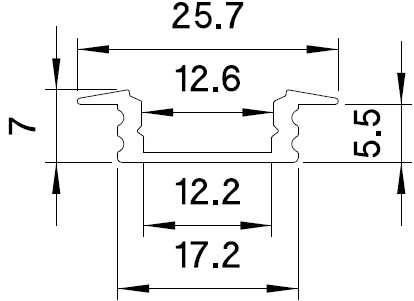

Profilo ad incasso 17,5x8mm c/flange

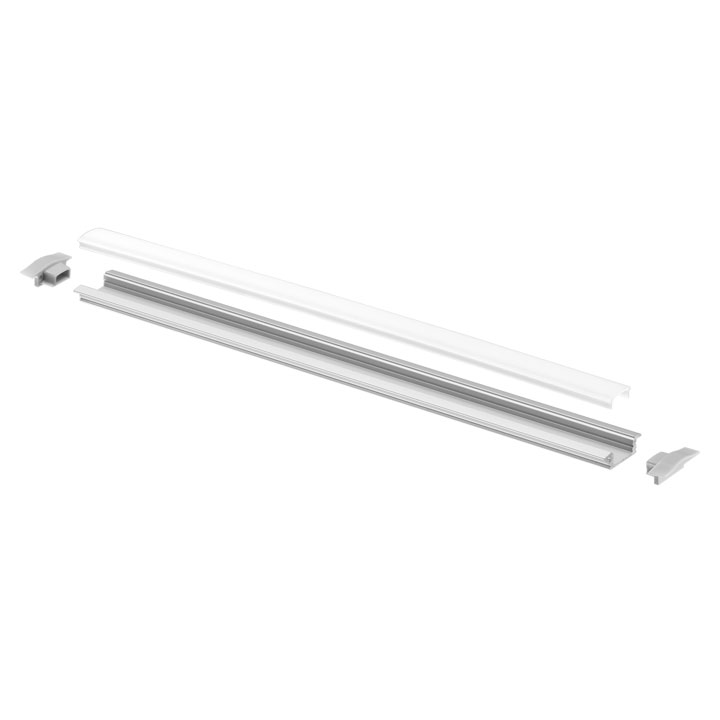

Profilo in alluminio estruso anodizzato.
Ideale per l’installazione e raffreddamento delle strip a LED.

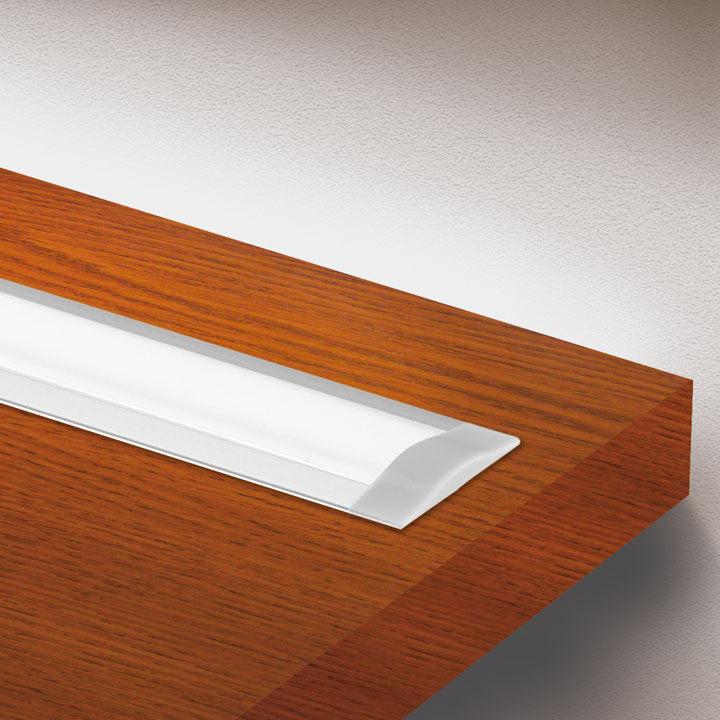

Dedicato per essere incassato nei sottopensili oppure sotto le mensole.
Il prodotto si presta per essere personalizzato, dal colore del profilo alla lunghezza, potendo scegliere il tipo di illuminazione che desideriamo.
| Code | Description |
|---|---|
| CLM001 | Round magnet Ø10mm H4mm |
| CLM002 | Self-adhesive magnetic tape, 5 m roll, 10 mm wide, weight 56 gr/m |
| CLM003 | Galvanized sheet metal bracket for magnet system |
| CTR006DIM | Dimmer 12/24V small 1ch x 3A 2.4Ghz RF input + button |
| CTR006RGBW | Control unit 12/24V RGBW small 10 progr. 4ch x 1A RF input 2.4Ghz+push |
| PRF003PX01 | Opal polycarbonate diffuser (2m bar) |
| PRF003PX11 | Opal polycarbonate diffuser (1m bar) |
| PRF003PX29 | PMMA diffuser 29° lens (2m bar) |
| PRF003PX31 | Opal polycarbonate diffuser (3m bar) |
| PRF003PX41 | Opal polycarbonate diffuser (4m bar) |
| PRF004PX01 | Opal polycarbonate diffuser (2m bar) Made in PRC |
| PRF004ST02 | Metal bracket for PRF004 profile (2-piece kit) |
| PRF005/100 | Recessed profile 17.5x8mm w/flanges (1m bar) |
| PRF005/100B | Recessed profile 17.5x8mm w/black flanges (1m bar) |
| PRF005/100W | Recessed profile 17.5x8mm w/white flanges (1m bar) |
| PRF005/200 | Recessed profile 17.5x8mm w/flanges (2m bar) |
| PRF005/200B | Recessed profile 17.5x8mm w/black flanges (2m bar) |
| PRF005/200W | Recessed profile 17.5x8mm w/white flanges (2m bar) |
| PRF005/300 | Recessed profile 17.5x8mm w/flanges (3m bar) |
| PRF005/300B | Recessed profile 17.5x8mm w/black flanges (3m bar) |
| PRF005/300W | Recessed profile 17.5x8mm w/white flanges (3m bar) |
| PRF005/400 | Recessed profile 17.5x8mm w/flanges (4m bar) |
| PRF005TP01 | Grey plastic cap for PRF005 profile |
| PRF005TP02 | White plastic cap for PRF005 profile |
| PRF005TP03 | Black plastic cap for PRF005 profile |
| S03D | Sensor Touch on/off for profiles with step dimmer |
| S03DC | Sensor Touch on/off for continuously dimming profiles |
| S03N | Sensor Touch on/off for non-dimmable profiles |
| S04PIR | PIR sensor on/off for LED profiles |
| S05O | Horizontal infrared sensor on/off for LED profiles |
| S05V | Vertical infrared sensor on/off for LED profiles |
| Finishing | Input power supply | Ref. | Watt | IP grade | |
|---|---|---|---|---|---|
| CLM001 | |||||
| CLM002 | |||||
| CLM003 | |||||
| CTR006DIM | 12,0/24,0Vdc | IP20 | |||
| CTR006RGBW | 12,0/24,0Vdc | IP20 | |||
| PRF003PX01 | Opale | ||||
| PRF003PX11 | Opale | ||||
| PRF003PX29 | Lente 30° | 30° | |||
| PRF003PX31 | Opale | ||||
| PRF003PX41 | Opale | ||||
| PRF004PX01 | Opale | ||||
| PRF004ST02 | |||||
| PRF005/100 | ZA | 14,4W | |||
| PRF005/100B | Nero opaco (RAL9005) | 14,4W | |||
| PRF005/100W | Bianco RAL9010 | 14,4W | |||
| PRF005/200 | ZA | 14,4W | |||
| PRF005/200B | Nero opaco (RAL9005) | 14,4W | |||
| PRF005/200W | Bianco RAL9010 | 14,4W | |||
| PRF005/300 | ZA | 14,4W | |||
| PRF005/300B | Nero opaco (RAL9005) | 14,4W | |||
| PRF005/300W | Bianco RAL9010 | 14,4W | |||
| PRF005/400 | ZA | 14,4W | |||
| PRF005TP01 | Grigio chiaro opaco (RAL9006) | ||||
| PRF005TP02 | Bianco RAL9010 | ||||
| PRF005TP03 | Nero opaco (RAL9005) | ||||
| S03D | 12,0/24,0Vdc | 60,0W | IP20 | ||
| S03DC | 12,0/24,0Vdc | 75,0W | IP20 | ||
| S03N | 12,0/24,0Vdc | 60,0W | IP20 | ||
| S04PIR | 12,0/24,0Vdc | 72,0W | IP20 | ||
| S05O | 12,0/24,0Vdc | 96,0W | IP20 | ||
| S05V | 12,0/24,0Vdc | 96,0W | IP20 |
