120° 45° IP54
Warm White, 3100K Neutral White, 4100K RGBy

JS125

Round outdoor step lights, equipped with 3W power LED,

Round outdoor step lights, equipped with 3W power LED, aluminum body.

IP grade IP54
CRI Ra>90
Lumen 280lm
Watt 3,0W
Led Type XTE , XPE
Brand Led CREE
Ref. 120° , 45°
Power supply 500,0mA , 350,0mA

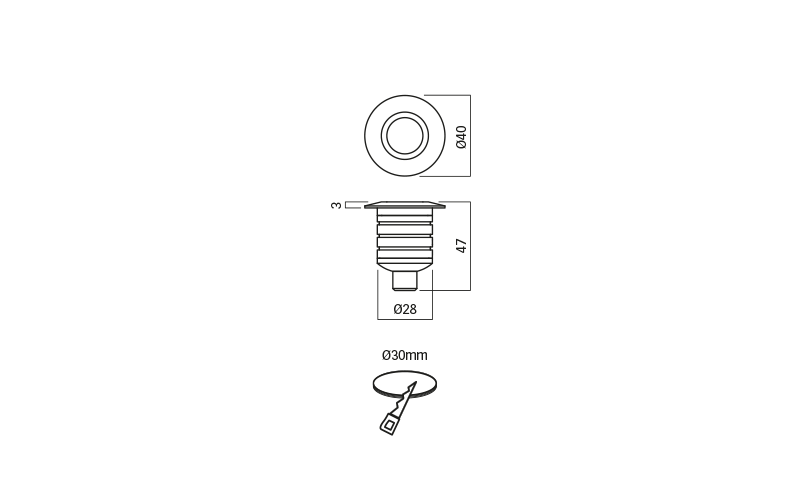

Hole 30mm
Packaging Box
Warranty 2 years
Finishes Cor-Ten , Bianco RAL9010
Downloads:

Code Description
9800401225 Round cover for JS124 / JS125 brushed nickel
JS125C503C00 ORSEOLO 1x3W LC 120° 500mA IP54
JS125C503C45 ORSEOLO 1x3W LC 45° 500mA IP54
JS125C503N00 ORSEOLO 1x3W LN 120° 500mA IP54
JS125C503N45 ORSEOLO 1x3W LN 45° 500mA IP54
JS125W503C00 ORSEOLO 1x3W LC 120° 500mA IP54
JS125W503C45 ORSEOLO 1x3W LC 45° 500mA IP54
JS125W503N00 ORSEOLO 1x3W LN 120° 500mA IP54
JS125W503N45 ORSEOLO 1x3W LN 45° 500mA IP54
JS125W503Y45 ORSEOLO 1x3W RGB 45° 350mA IP54
Finishing Input power supply Number of LEDs Color light Ref. Lumen Watt IP grade
9800401225
JS125C503C00 Cor-Ten 500,0mA 1 Warm White, 3100K 120° 280lm 3,0W IP54
JS125C503C45 Cor-Ten 500,0mA 1 Warm White, 3100K 45° 280lm 3,0W IP54
JS125C503N00 Cor-Ten 500,0mA 1 Neutral White, 4100K 120° 280lm 3,0W IP54
JS125C503N45 Cor-Ten 500,0mA 1 Neutral White, 4100K 45° 280lm 3,0W IP54
JS125W503C00 Bianco RAL9010 500,0mA 1 Warm White, 3100K 120° 280lm 3,0W IP54
JS125W503C45 Bianco RAL9010 500,0mA 1 Warm White, 3100K 45° 280lm 3,0W IP54
JS125W503N00 Bianco RAL9010 500,0mA 1 Neutral White, 4100K 120° 280lm 3,0W IP54
JS125W503N45 Bianco RAL9010 500,0mA 1 Neutral White, 4100K 45° 280lm 3,0W IP54
JS125W503Y45 Bianco RAL9010 350,0mA 1 RGBy 45° 3,0W IP54












Accessories not included

  • 9800416003
    Adapter for 503 box with 30mm hole

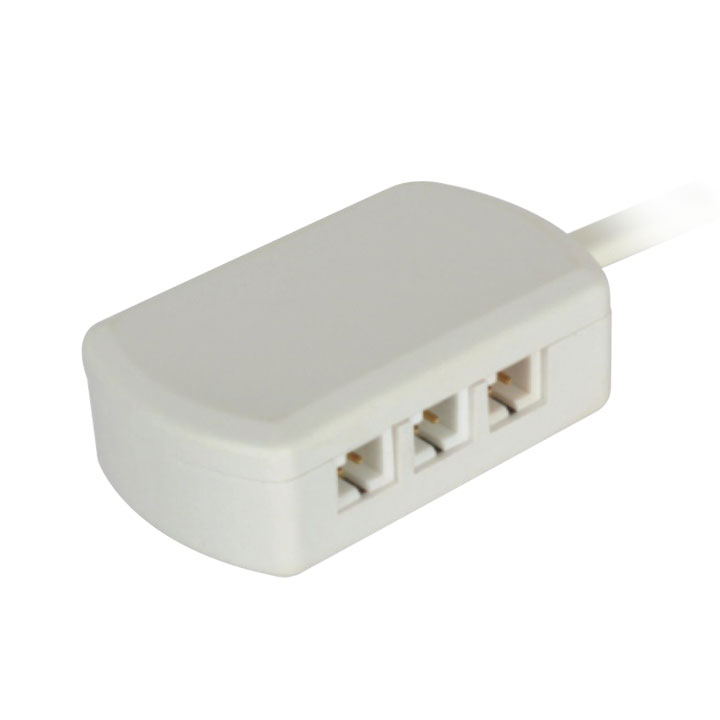

  • VMCONN7001
    Multiple 6 places 700mA with 90cm cable
    • Power supplier
    Outer cases

    • 9800500021
      Back box for Orseolo and Scorpius families
