Aluminio Spazzolato IP20
Warm White, 3100K Neutral White, 4100K

ARES1020

Recessed 1W, IP20, 230Vac

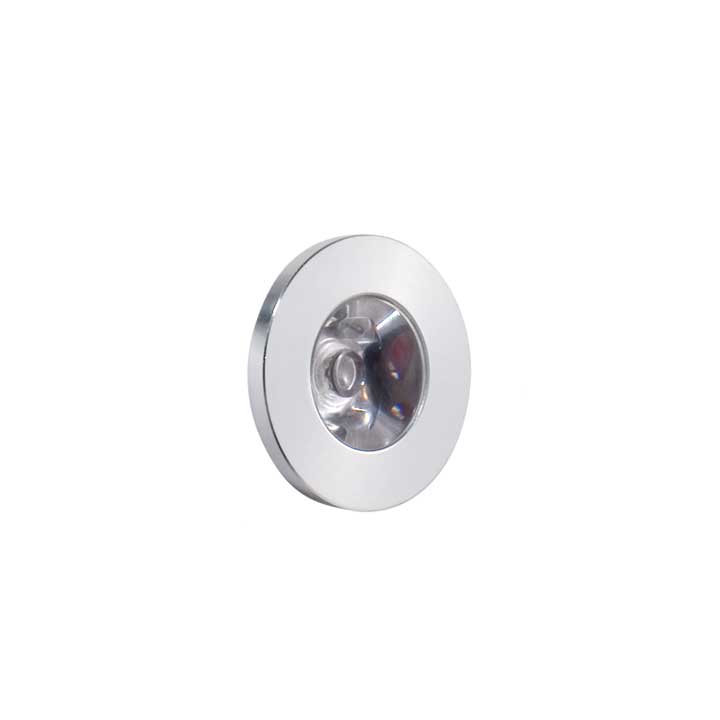

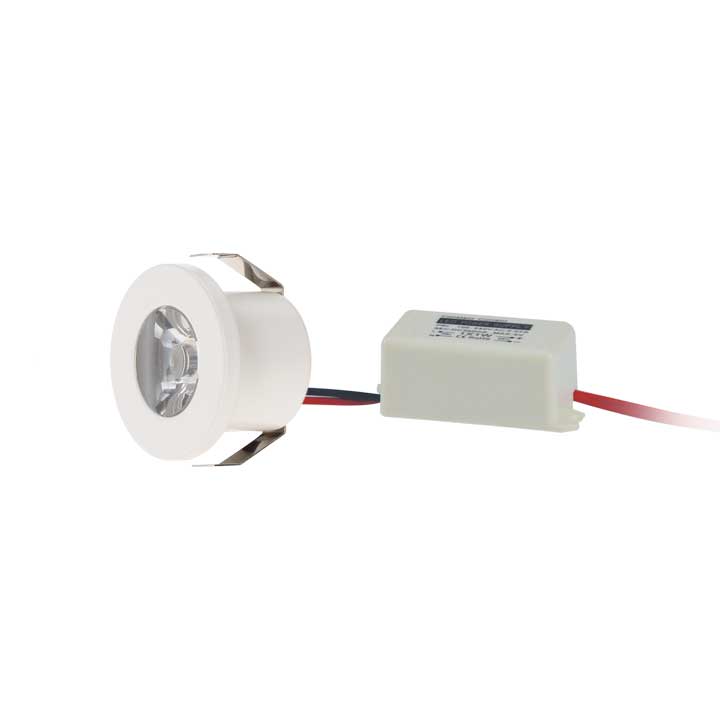

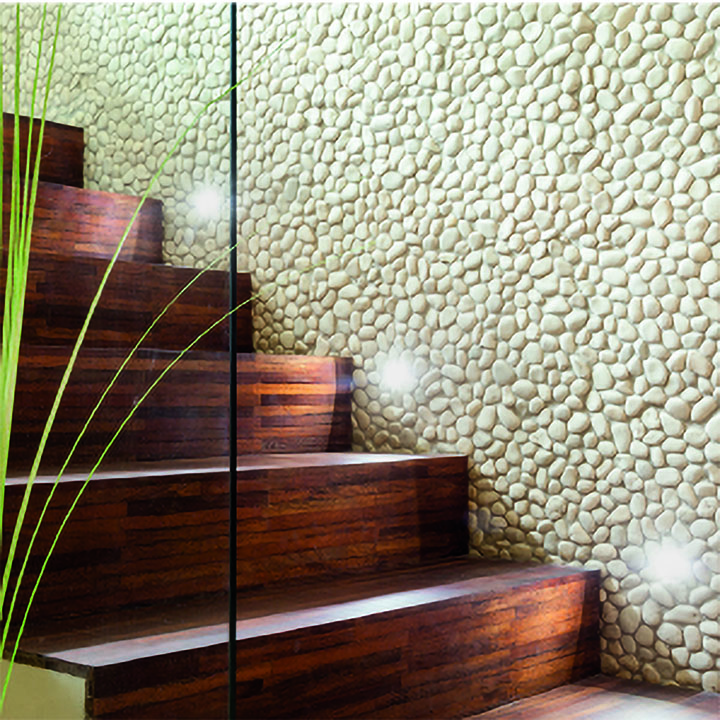

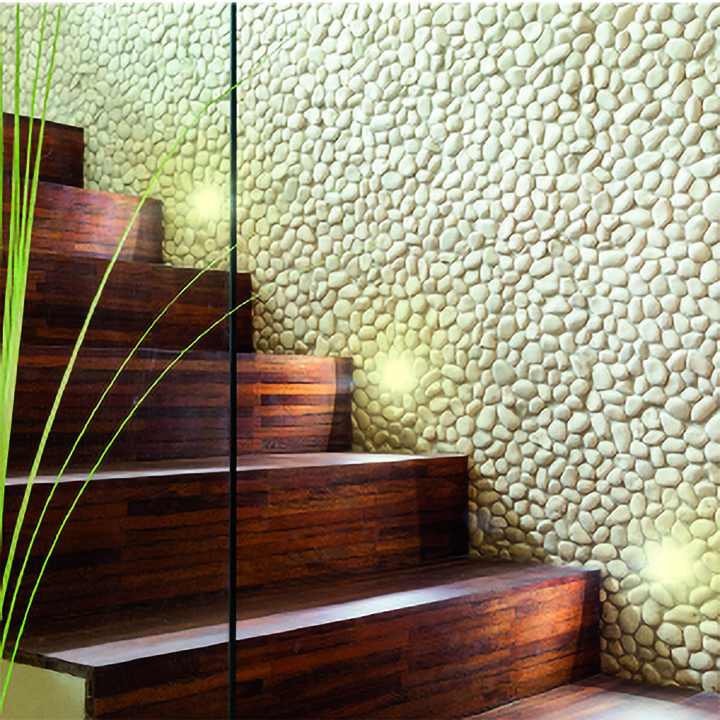

Round steplight in turned aluminum. Ideal for illuminating paths such as corridors or stairs.

IP grade IP20
CRI '80M , Ra>80
Lumen 68lm , 78lm
Watt 1,0W , 0001
Led Type Power LED
Ref. 30°
Power supply 110,0-230,0Vac

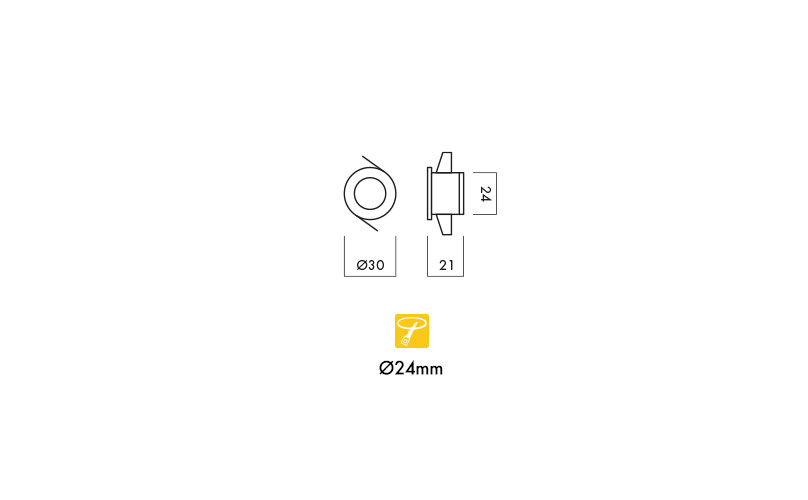

Hole 27mm , 262mm

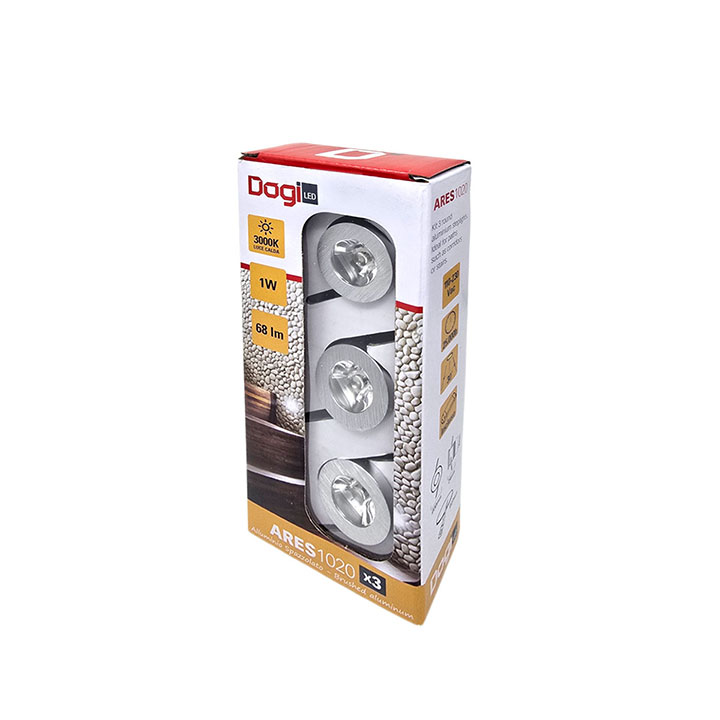

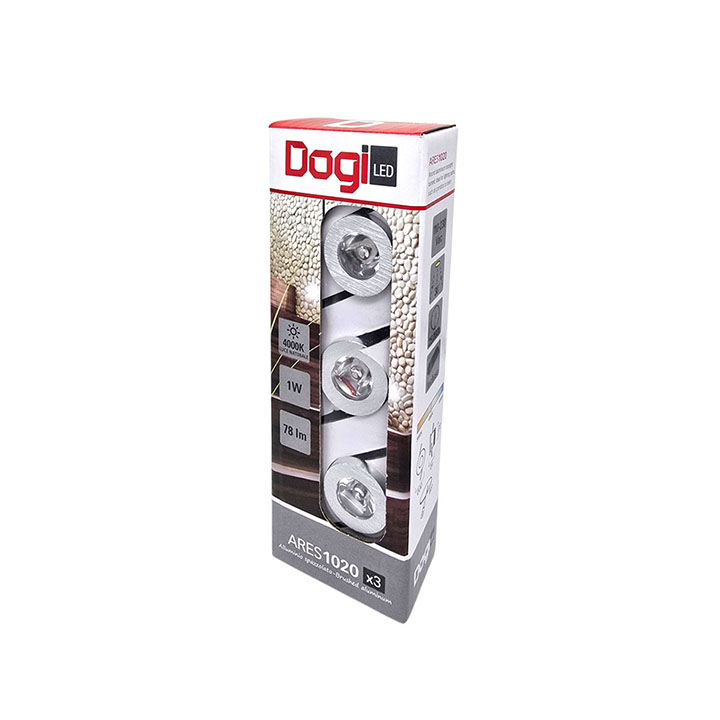

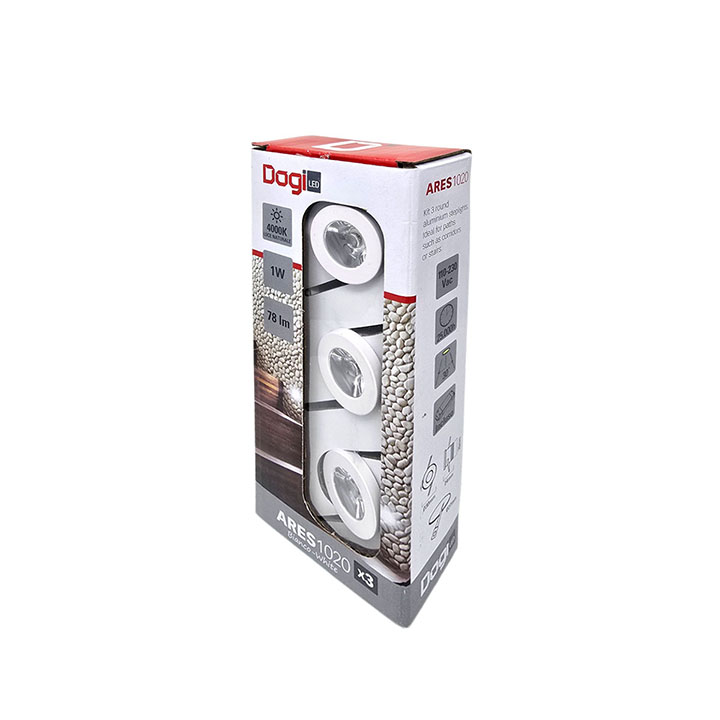

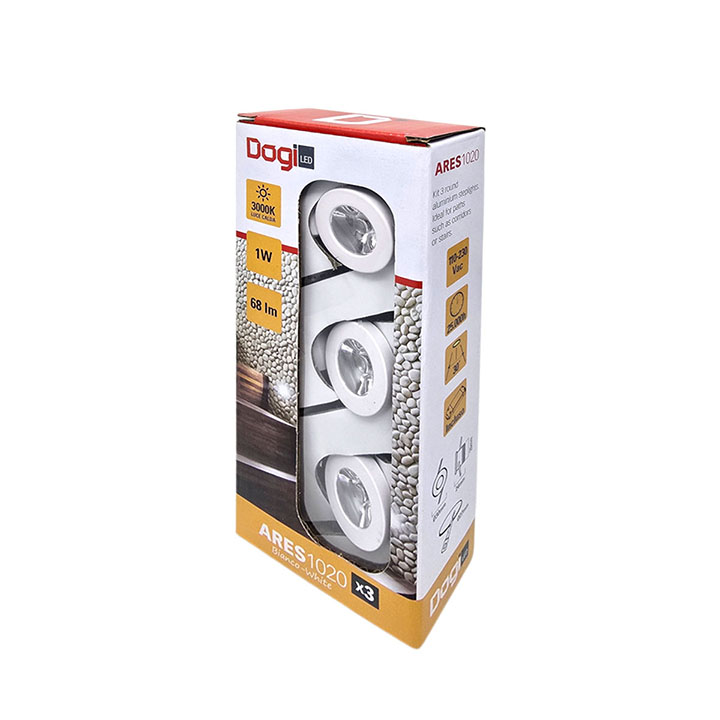

Packaging Box
Warranty 2 years
Finishes Bianco RAL9010 , Aluminio Spazzolato
Downloads:

Code Description
AR1020SETWC40 Round white step light 1x1W, LC, 30°, 230Vac, IP20, Set of 3
AR1020SETWN40 Round white step light 1x1W, LN, 30°, 230Vac, IP20, Set of 3
AR1020SETZC40 Round brushed aluminum step light 1x1W, LC, 30°, 230Vac, IP20, 3pcs
AR1020SETZN40 Round brushed aluminum step light 1x1W, LN, 30°, 230Vac, IP20.3pcs
Finishing Input power supply Number of LEDs Color light Ref. Lumen Watt IP grade
AR1020SETWC40 Bianco RAL9010 110,0-230,0Vac 1 Warm White, 3100K 30° 68lm 1,0W IP20
AR1020SETWN40 Bianco RAL9010 110,0-230,0Vac 1 N 30° 78lm 0001 IP20
AR1020SETZC40 Aluminio Spazzolato 110,0-230,0Vac 1 Warm White, 3100K 30° 68lm 1,0W IP20
AR1020SETZN40 Aluminio Spazzolato 110,0-230,0Vac 1 Neutral White, 4100K 30° 78lm 1,0W IP20
