24,0Vdc 120° IP20

GB071

GALBAIO 71: INDIRECT SINGLE EMISSION WALL LAMP

Single-emission aluminum profile for wall installation, with internal housing designed for driver insertion. Available in 33 or 52cm bars, and other lengths and in various colors and light tones on request.

IP grade IP20
Watt 15P60 , 7P60 , 11P5
Ref. 120°
Power supply 24,0Vdc
Packaging Box
Warranty 2 years
Finishes Bianco RAL9010 , Nero opaco (RAL9005)
Downloads:

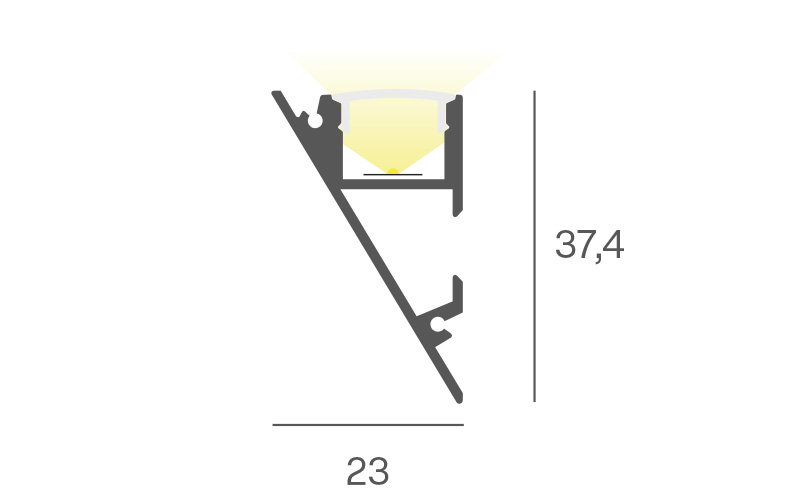

  • Technical drawing
  • Data sheet

Code Description
GB034W033N00 GALBAIO 7.6W, 120°, LN 4000K, 24Vdc, 33 cm, IP20, White
GB071B033C00 GALBAIO 7.6W, 120°, LC 3000K, 24Vdc, 33 cm, IP20, Black
GB071B033G00 GALBAIO 7.6W, 120°, LC 2700K, 24Vdc, 33 cm, IP20, Black
GB071B033N00 GALBAIO 7.6W, 120°, LN 4000K, 24Vdc, 33 cm, IP20, Black
GB071B052C00 GALBAIO 11.5W, 120°, LC 3000K, 24Vdc, 52 cm, IP20, Black
GB071B052G00 GALBAIO 11.5W, 120°, LC 2700K, 24Vdc, 52 cm, IP20, Black
GB071B052N00 GALBAIO 11.5W, 120°, LN 4000K, 24Vdc, 52 cm, IP20, Black
GB071W033C00 GALBAIO 7.6W, 120°, LC 3000K, 24Vdc, 33 cm, IP20, White
GB071W033G00 GALBAIO 7.6W, 120°, LC 2700K, 24Vdc, 33 cm, IP20, White
GB071W033N00 GALBAIO 7.6W, 120°, LN 4000K, 24Vdc, 33 cm, IP20, White
GB071W052C00 GALBAIO 11.5W, 120°, LC 3000K, 24Vdc, 52 cm, IP20, White
GB071W052G00 GALBAIO 11.5W, 120°, LC 2700K, 24Vdc, 52 cm, IP20, White
GB071W052N00 GALBAIO 11.5W, 120°, LN 4000K, 24Vdc, 52 cm, IP20, White
Finishing Input power supply Color light Ref. Watt IP grade
GB034W033N00 Bianco RAL9010 24,0Vdc N 120° 15P60 IP20
GB071B033C00 Nero opaco (RAL9005) 24,0Vdc C 120° 7P60 IP20
GB071B033G00 Nero opaco (RAL9005) 24,0Vdc G 120° 7P60 IP20
GB071B033N00 Nero opaco (RAL9005) 24,0Vdc N 120° 7P60 IP20
GB071B052C00 Nero opaco (RAL9005) 24,0Vdc C 120° 11P5 IP20
GB071B052G00 Nero opaco (RAL9005) 24,0Vdc G 120° 11P5 IP20
GB071B052N00 Nero opaco (RAL9005) 24,0Vdc N 120° 11P5 IP20
GB071W033C00 Bianco RAL9010 24,0Vdc C 120° 7P60 IP20
GB071W033G00 Bianco RAL9010 24,0Vdc G 120° 7P60 IP20
GB071W033N00 Bianco RAL9010 N 120° 7P60 IP20
GB071W052C00 Bianco RAL9010 24,0Vdc C 120° 11P5 IP20
GB071W052G00 Bianco RAL9010 24,0Vdc G 120° 11P5 IP20
GB071W052N00 Bianco RAL9010 24,0Vdc N 120° 11P5 IP20
